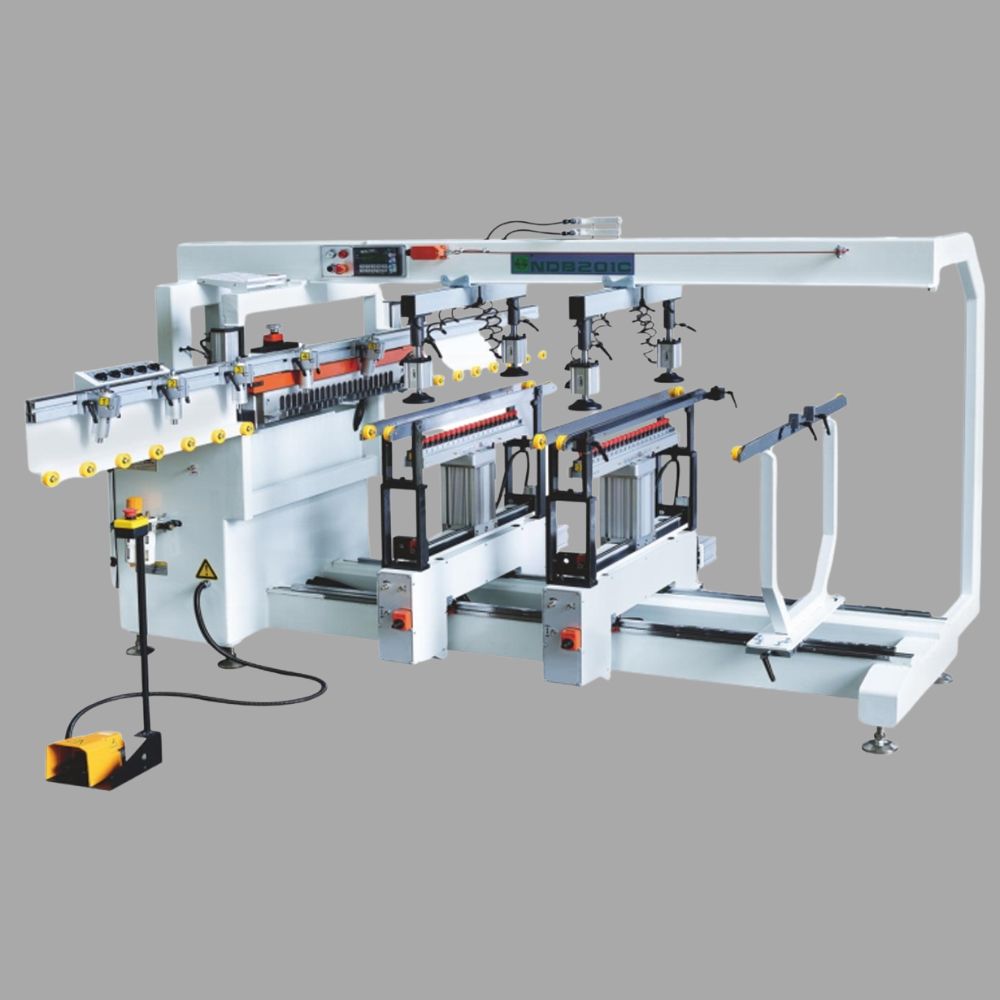

The RD 2 Head Multi Boring Machine is a reliable and high‑precision drilling solution designed for modular furniture and cabinet manufacturing. With two powerful drilling heads and a robust structure, this machine ensures accurate, efficient, and consistent multi‑hole drilling for hinges, dowels, and assembly fittings.
Built for industrial performance, the RD 2 Head model enhances productivity while maintaining superior drilling accuracy and smooth operation.
Key Features
- Dual Drilling Heads: Two independent heads enable simultaneous multi‑row drilling, increasing production efficiency.
- Heavy‑Duty Thickened Body: Strong machine frame ensures vibration‑free performance and long service life.
- Touch Screen Interface: Easy and precise parameter setting for improved operational control.
- High‑Quality Aluminum Guide Rails: 2500 mm guiding rule ensures perfect alignment and long‑term durability without deformation.
- Powerful & Stable Motor: 1.5 kW motor provides consistent torque for continuous industrial usage.
- Large Pneumatic Cylinders: Ensure stable clamping and reliable long-term performance.
- High Rotational Speed: 2800 rpm ensures clean and accurate drilling results.
Applications
- Modular kitchen production
- Cabinet and wardrobe manufacturing
- Panel furniture assembly
- Hinge and hardware hole drilling
- Mass production woodworking units
| Dimensons | Description |
|---|---|
| Working Stroke | : 1300mm |
| Maximum Drilling Diameter | : 35mm |
| Maximum Drilling Depth | : 60mm |
| Number Of Drilling Shafts | : 21x 2 rows |
| Rotate Speed | : 2800r/min |
| Motor Power | : 1.5KW |
| Slope Guiding Rule Lengh | : 2500mm |
| Air Pressure | : 0.6-0.8MPa |
| Control Screen | : Touch screen control |
| Dimension | : 3400×1200×1600mm |
| Weight | : 1000kg |
| Tools | : Send 4 sets of drill bits & drill caps |
