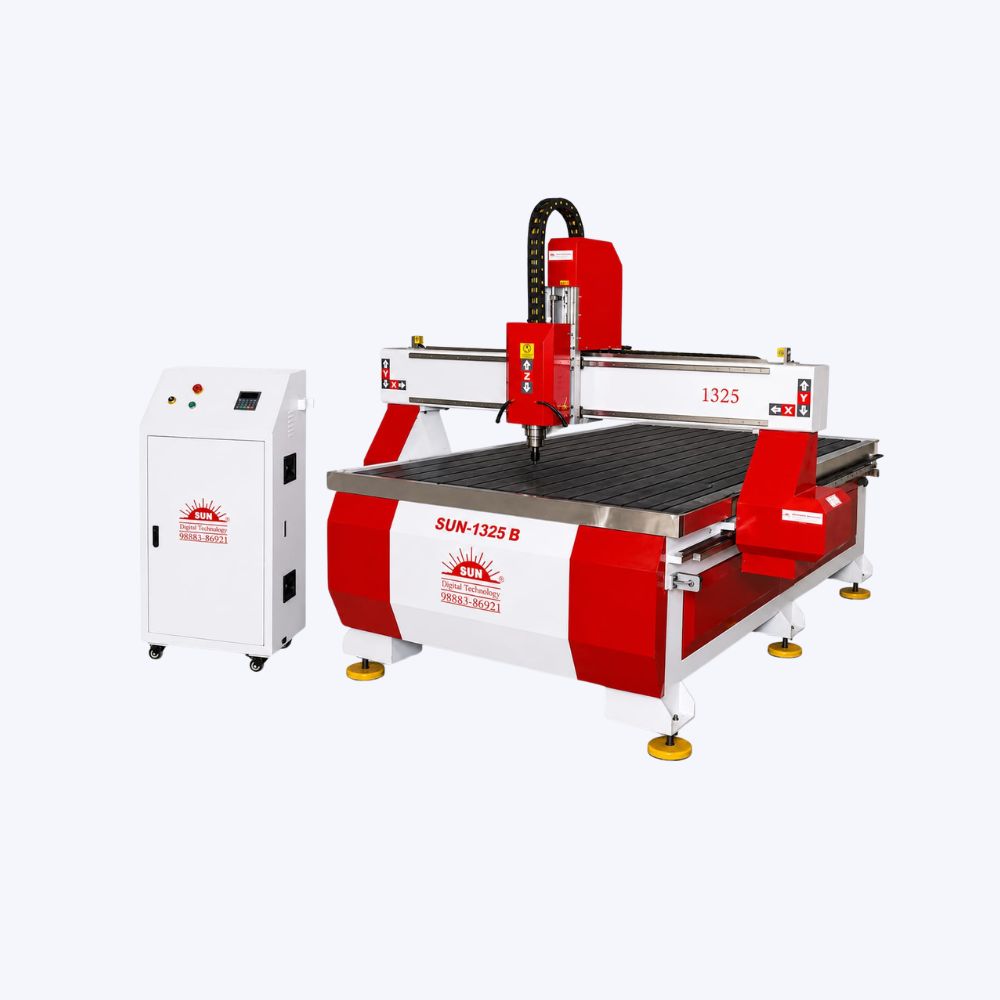

The S-1325 B+ Plus Multipurpose CNC Router Machine is a robust and versatile CNC machining solution designed for high-precision cutting, engraving, carving, and profiling across a wide range of materials. Built for woodworking, signage, interior decoration, and industrial fabrication, this machine combines advanced motion control, heavy-duty construction, and reliable performance to deliver outstanding results in both 2D and 3D applications.
Featuring a full servo drive system, precision Taiwan helical rack & pinion transmission, and a high-speed spindle, the S-1325 B+ Plus ensures smooth operation, superior cutting accuracy, and long-term durability. Its rigid steel frame minimizes vibration, allowing manufacturers to achieve consistent quality even during continuous production.
The machine is compatible with multiple spindle configurations, making it suitable for processing wood, MDF, plywood, acrylic, PVC, ACP sheets, aluminum, brass, copper, marble, granite, glass, and other composite materials. Whether you’re producing furniture, decorative panels, signage, or customized components, the S-1325 B+ Plus delivers speed, precision, and reliability.
Key Features
- High-performance CNC router for industrial applications
- Suitable for 2D and 3D cutting, carving, engraving, and profiling
- Available working sizes: 8×4 ft, 8×5 ft, and 10×5 ft
- Multiple spindle options: 3.2 kW, 5.5 kW, or 6.0 kW (Water-Cooled or Air-Cooled HSD Optional)
- High spindle speed of up to 24,000 RPM
- Heavy-duty cast steel machine frame for vibration-free operation
- Taiwan helical rack & pinion drive for high-speed and accurate movement
- Precision TBI ball screw Z-axis transmission with brake system
- Full servo motors with planetary gearbox
- Machine accuracy of less than 0.01 mm
- Supports G-Code programming
- Compatible with ArtCAM, AutoCAD, Type3, and other CNC software
- Easy maintenance with manual lubrication system
Applications
- Furniture manufacturing
- Modular kitchen production
- Wooden door and cabinet machining
- Decorative wall panels and partitions
- 2D & 3D relief carving
- Acrylic and ACP signage
- Nameplates and branding solutions
- Interior décor products
- Marble and granite engraving
- Metal engraving and light fabrication
- Custom woodworking and industrial production
| Dimensons | Description |
|---|---|
| Working Size | 8x4 = 8x5 = 10x5 Feet |
| Machine Power | 7.5 kw or 8.5 hp |
| Z-Transmission | Taiwan 25mm Z Ball Screw Drive with Break System-TBI |
| Table Structure | Cast Steel |
| Bed Structure | T-Slot Alluminium Table with hard pvc |
| Spindle Power | 3.2kw / 5.5kw / 6.0kw Water Cool / Air Cool HSD HQD |
| Spindle Speed | 24000 / 18000 RPM |
| Max Air Move Speed | 35000 MM/RPM |
| Max Working Speed | 30000 MM/RPM |
| XY-Transmission | Taiwan 1.25mm Helical Rank Gear XY Axis |
| Guide Rail | LM Guide Rail 20mm Made in Germany |
| Drive | Full Servo Drive |
| Motor | Full Servo Motor with Planetary Gear Box |
| Controller | Rich Auto DSP A11S |
| Main Switch | Omron Made in Germany |
| Electronics | Schneider & Siemens Made in Germany |
| Machine Accuracy | <0.01 mm |
| Inverter | Rituo & Best VDF |
| Program | G-Code Program |
| Voltage | 1 Phase 220AC / 3 Phases 380AC |
| Software | Artcam, Catcam, Autocut |
| Oil Pump | Manual Lubrication System |
| Gross Weight | 1500 kg |
| Accessories | 10 pc. Bits Spanner Full Set Adjustment Feet Screw, Full Set Spindle Nut 1 pc. 2 pc. Sensor, 2 pc. Water Pump |
