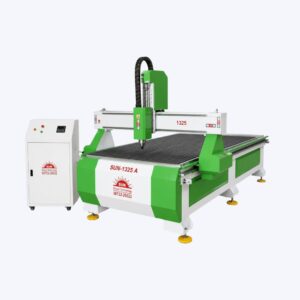

The CNC Router Machine S-1325 A+ (Plus) is a powerful and precision-engineered solution designed for cutting, carving, engraving, and routing applications across a wide range of materials. Built with a heavy-duty cast steel structure and advanced servo technology, this machine delivers exceptional performance, accuracy, and durability for furniture manufacturing, interior decoration, signage production, and custom fabrication projects.
Compatible with Wood, MDF, Acrylic Sheets, ACP Sheets, PVC Sheets, Hardwood, Glass, Korean Sheets, and Composite Materials, the S-1325 A+ is capable of handling both 2D and 3D carving operations with outstanding efficiency and consistent results.
Features
• Heavy-duty cast steel construction for maximum stability and long service life
• Full servo drive system with planetary gearbox for smooth and accurate motion control
• Taiwan TBI Ball Screw Z-Axis transmission with brake system
• Taiwan Helical Rack & Pinion XY transmission for high-speed operation
• Precision LM guide rails for superior cutting accuracy
• High-performance spindle options with air-cooled or water-cooled configurations
• DSP A11S controller for reliable and user-friendly operation
• Supports G-Code programming
• Compatible with ArtCAM, Catcam, AutoCut, and other CNC design software
• Suitable for cutting, engraving, drilling, carving, and routing applications
Applications
• Modular Furniture Manufacturing
• MDF Cutting and Decorative Carving
• Wooden Door Design Engraving
• Acrylic Letter and Sign Board Cutting
• ACP Sheet Processing
• PVC Panel Fabrication
• Interior Decoration Projects
• 3D Relief Carving
• Name Plates and Signage Production
• Customized Furniture Components
| Dimensons | Description |
|---|---|
| Working Size | 8x4 = 8x5 = 10x5 Feet |
| Machine Power | 7.5 kw or 8.5 hp |
| Z-Transmission | Taiwan 25mm Z Ball Screw Drive with Break System-TBI |
| Table Structure | Cast Steel |
| Bed Structure | T-Slot Alluminium Table with hard pvc |
| Spindle Power | 3.5kw / 4.5kw / 6kw Air Cool/Water Cool, HSD Italian HQD |
| Spindle Speed | 24000 / 18000 RPM Air Cooling |
| Max Air Move Speed | 35000 MM/RPM |
| Max Working Speed | 30000 MM/RPM |
| XY-Transmission | Taiwan 1.25mm Helical Rank Gear XY Axis |
| Guide Rail | LM Guide Rail 20mm Made in Germany |
| Drive | Full Servo Drive |
| Motor | Full Servo Motor with Planetary Gear Box |
| Controller | Rich Auto DSP A11S |
| Main Switch | Omron Made in Germany |
| Electronics | Schneider & Siemens Made in Germany |
| Machine Accuracy | <0.01 mm |
| Inverter | Rituo & Best VDF |
| Program | G-Code Program |
| Voltage | 1 Phase 220AC / 3 Phases 380AC |
| Software | Artcam, Catcam, Autocut |
| Oil Pump | Manual Lubrication System |
| Gross Weight | 1500 kg |
| Accessories | 10 pc. Bits Spanner Full Set Adjustment Feet Screw, Full Set Spindle Nut 1 pc. 2 pc. Sensor |
