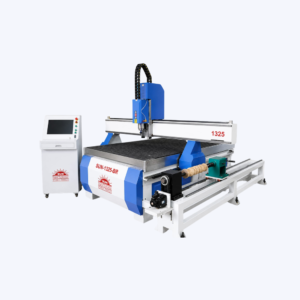

The S-1325 Stoner Plus Multipurpose CNC Router Machine is a high-performance industrial CNC router designed for continuous, precision machining in woodworking, signage, advertising, and fabrication industries. Built with a robust steel frame and advanced motion control technology, this machine delivers exceptional accuracy, speed, and reliability for both 2D and 3D cutting, carving, engraving, and profiling applications.
Engineered for 24-hour continuous operation, the S-1325 Stoner Plus is equipped with a 5.5 kW water-cooled spindle, full servo drive system, and Taiwan helical rack & pinion transmission, ensuring smooth movement, superior cutting performance, and long service life. Its heavy-duty construction minimizes vibration, providing high-quality finishes even during demanding production runs.
Compatible with a wide range of materials, including wood, MDF, acrylic, PVC, ACP sheets, hardwood, aluminum, brass, copper, marble, granite, and glass, this CNC router is an ideal solution for furniture manufacturers, interior designers, sign makers, stone fabricators, and custom engraving businesses.
Key Features
- Heavy-duty industrial CNC router for 24/7 operation
- High-precision 2D & 3D cutting, carving, and engraving
- Available working sizes: 8×4 ft, 10×7 ft, and 10×5 ft
- Powerful 5.5 kW water-cooled spindle with 24,000 RPM
- Full servo motor system with planetary gearbox for high accuracy
- Taiwan helical rack & pinion drive for smooth and fast movement
- TBI ball screw Z-axis transmission with brake system
- Cast steel table structure with T-slot aluminum vacuum table
- Machine accuracy of less than 0.01 mm
- Supports ArtCAM, AutoCAD, and Type3 software
- Compatible with standard G-Code programming
- Easy maintenance with manual lubrication system
Applications
- Wooden furniture manufacturing
- Modular kitchen production
- Door and panel carving
- CNC engraving and relief carving
- ACP and acrylic signage
- Nameplates and advertising boards
- Stone engraving and cutting
- Metal engraving
- Interior decoration and architectural panels
- Customized industrial fabrication
| Dimensons | Description |
|---|---|
| Working Size | 8x4 feet / 10x7 feet / 10 x 5 feet |
| Machine Power | 9 kw or 11.5 hp |
| Z-Transmission | Taiwan 25mm Z Ball Screw Drive with Break System-TBI |
| Table Structure | Cast Steel |
| Bed Structure | T-Slot Alluminium Table with hard pvc |
| Spindle Power | 5.5 kw Water Cool |
| Spindle Speed | Water 24000 RPM |
| Max Air Move Speed | 35000 MM/RPM |
| Max Working Speed | 30000 MM/RPM |
| XY-Transmission | Taiwan 1.25mm Helical Rank Gear XY Axis |
| Guide Rail | LM Guide Rail 20mm Made in Germany |
| Drive | Full Servo Drive |
| Motor | Full Servo Motor with Planetary Gear Box |
| Controller | Rich Auto DSP A11S |
| Main Switch | Omron Made in Germany |
| Electronics | Schneider & Siemens Made in Germany |
| Machine Accuracy | <0.01 mm |
| Inverter | Rituo & Best VDF |
| Program | G-Code Program |
| Voltage | 3 Phases 380AC |
| Software | Artcam, Catcam, Autocut |
| Oil Pump | Manual Lubrication System |
| Accessories | 10 pc. Bits Spanner Full Set Adjustment Feet Screw, Full Set Spindle Nut 1 pc. 2 pc. Sensor, 2 pc. Water Pump |
