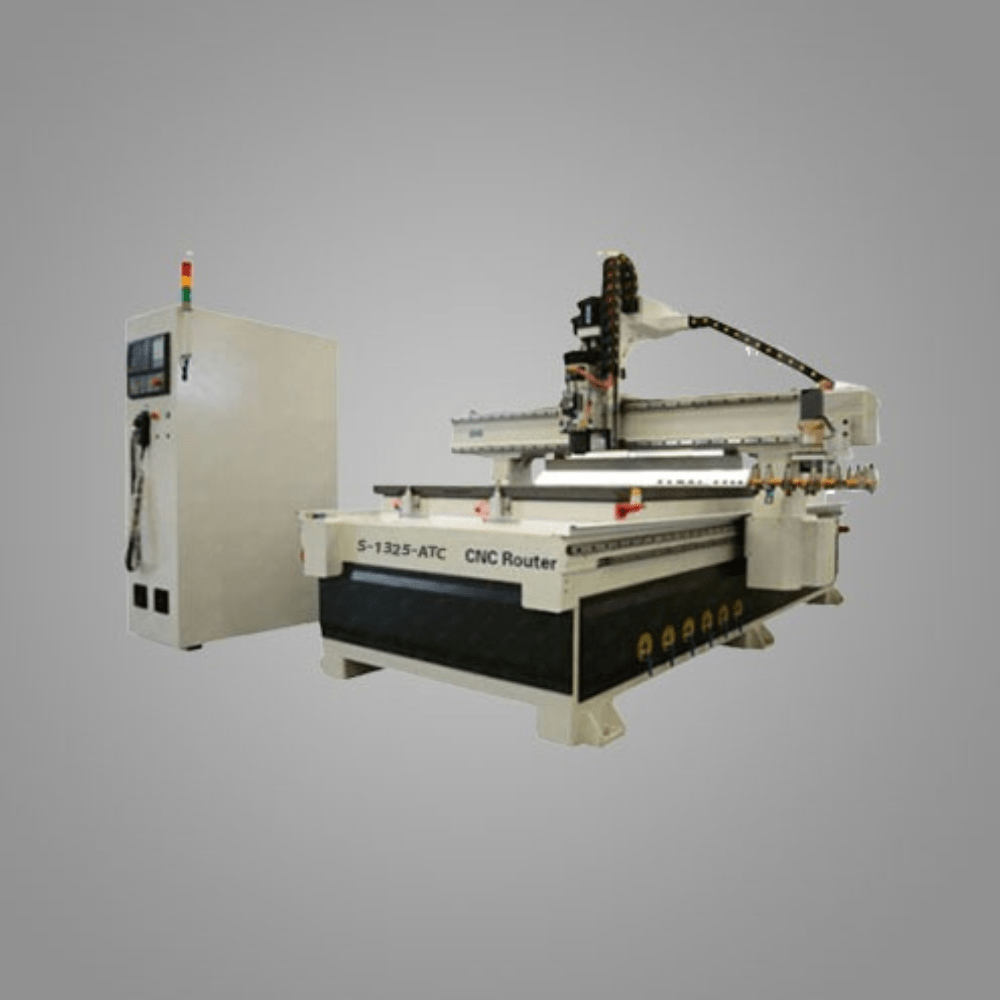

CNC Router Machine Model S-1325-ATC

CNC Router Machine Model S-1325-ATC

Original price was: ₹1,100,000.00.Current price is: ₹950,000.00.

This Machine Working on:

Glass, Woods, MDF, ACP Sheet, Acrylic Sheet, Hardwood, PVC, Sheet, Korean Cutting, 2D & 3D Carving. Marble, Granite, Metal, Aluminium, Copper, Brass

Category:
Guaranteed Safe Checkout
DimensonsDescription
1. WORKING SIZEX-1300* Y-2500* Z-300MM
2. MACHINE POWER9KW OR 11.5HP
3. Z-TRANSMISSION TAIWAN 35MM Z BALL SCREW DRIVE WITH BREAK SYSTEM-TBI
4. TABLE STRUCTURECAST STEEL
5. BED STRUCTURE 9KW VACUUM BED WITH T-SLOT ALUMINUM TABLE
6. SPINDLE POWER9 KW. AIR COOL SPINDLE HSD ITALIAN
7. SPINDLE SPEEDAIR 30000RPM/MIN
8. MAX AIR MOVE SPEED50000MM/MIN
9. MAX WORKING SPEED30000MM/MIN
10. X/Y-TRANSMISSIONTAIWAN 1.25M HELICAL RACK GEARS FOR XY AXIS,
11. GUIDE RAILLM GUIDE RAIL 25 / MM HIWIN MADE IN GERMANY
12. DRIVEPANASONIC SERVO
13. MOTORPANASONIC 850W SERVO
14. CONTROLLER SYNTECH
15. MAIN SWITCHOMRON- MADE IN GERMANY
16. ELECTRONICSSCHNEIDER & SIEMENS MADE IN GERMANY
17. MACHINE ACCURACY<0.3 MM
18. INVERTER RITUO & BEST VDF
19. PROGRAMG-CODE PROGRAM
20. VOLTAGE1 PHASES 220AC / 3 PHASES 380AC
21. SOFTWAREARTCAM, CATCAM, AUTOCUT
22. OIL PUMPMANUAL LUBRICATION SYSTEM
23. GROSSWEIGHT 2000KG
24. ACCESSORIES20 PC BITS, SPANNER FULL SET ADJUSTMENT FEET SCREW,
